CS Pipes

TYPE	NORMS	GRADE	RANGE
SEAMLESS	API 5L/A106/A53	B,X42,X52,X60,X65,X70	¼”-24”
WELDED	A53/API 5L	B,X42,X52,X60,X65,X70	2”-96”

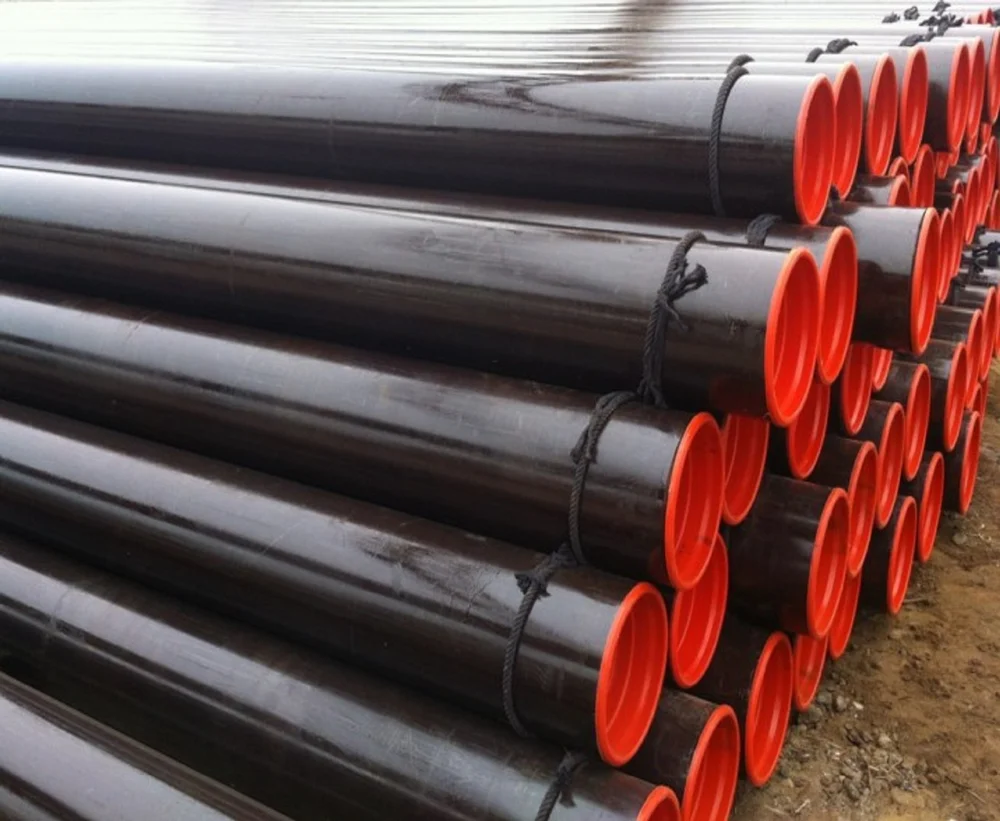

CS Low Temp

TYPE	NORMS	GRADE	RANGE
SEAMLESS	A333	BGr 3,6	¼”-24”
WELDED	A671, A672	CC60,CC65, c55. c60, cc70	14”-144”, 16"-144"

SS Pipes

TYPE	NORMS	GRADE	RANGE
SEAMLESS	A312	TP 316/36L,TP304/304L/TP 321/TP 310/TP 347/TP 317	½”-18”
WELDED	A312/A358/A790	BTP 316/36L,TP304/304L/TP321/TP310/TP347/TP317 UNS Grades	2”-48”

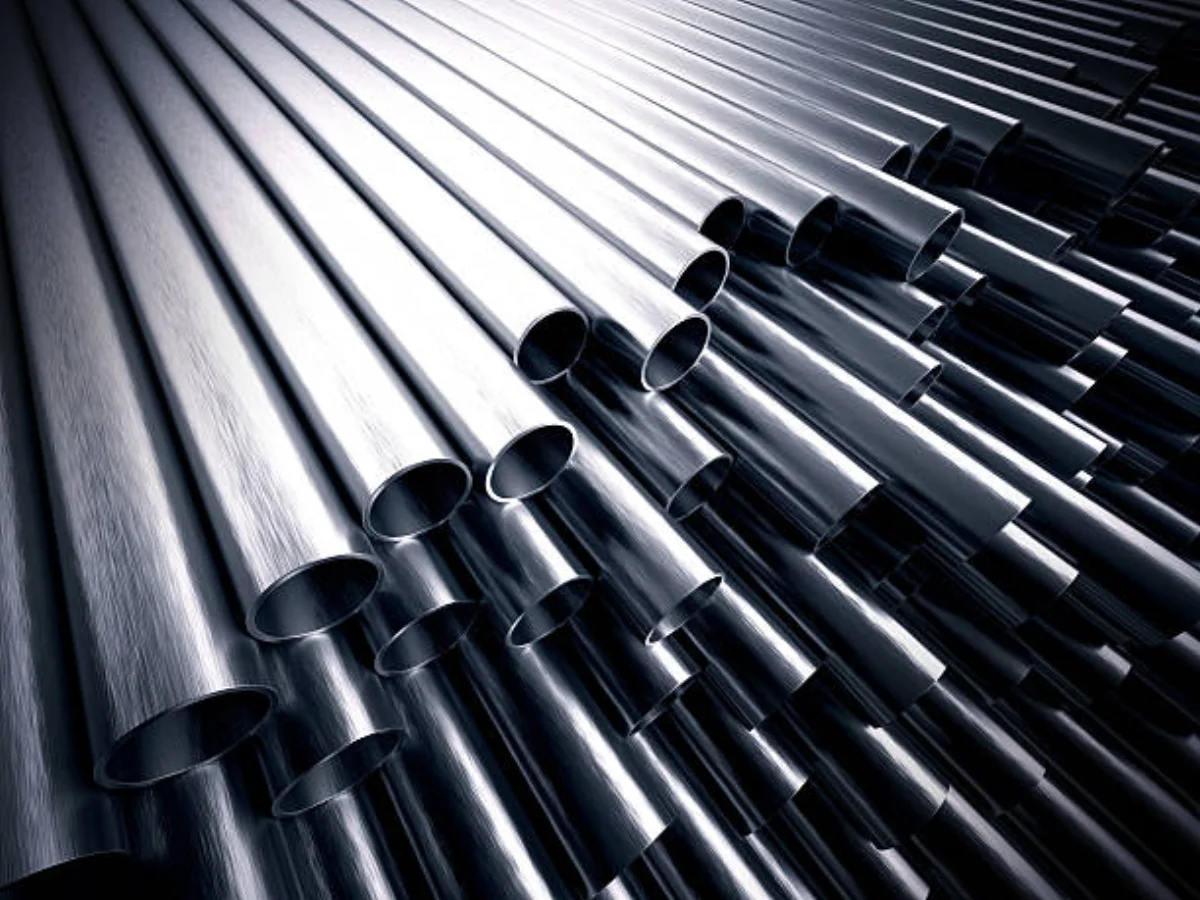

Alloy Pipes

TYPE	NORMS	GRADE	RANGE
SEAMLESS	A335	P1,02,P5,P9,P11,P12,P2	¼”-24”
WELDED	A691	CM Grades	16”-96”
	B462	UNS Grades	16”-96”

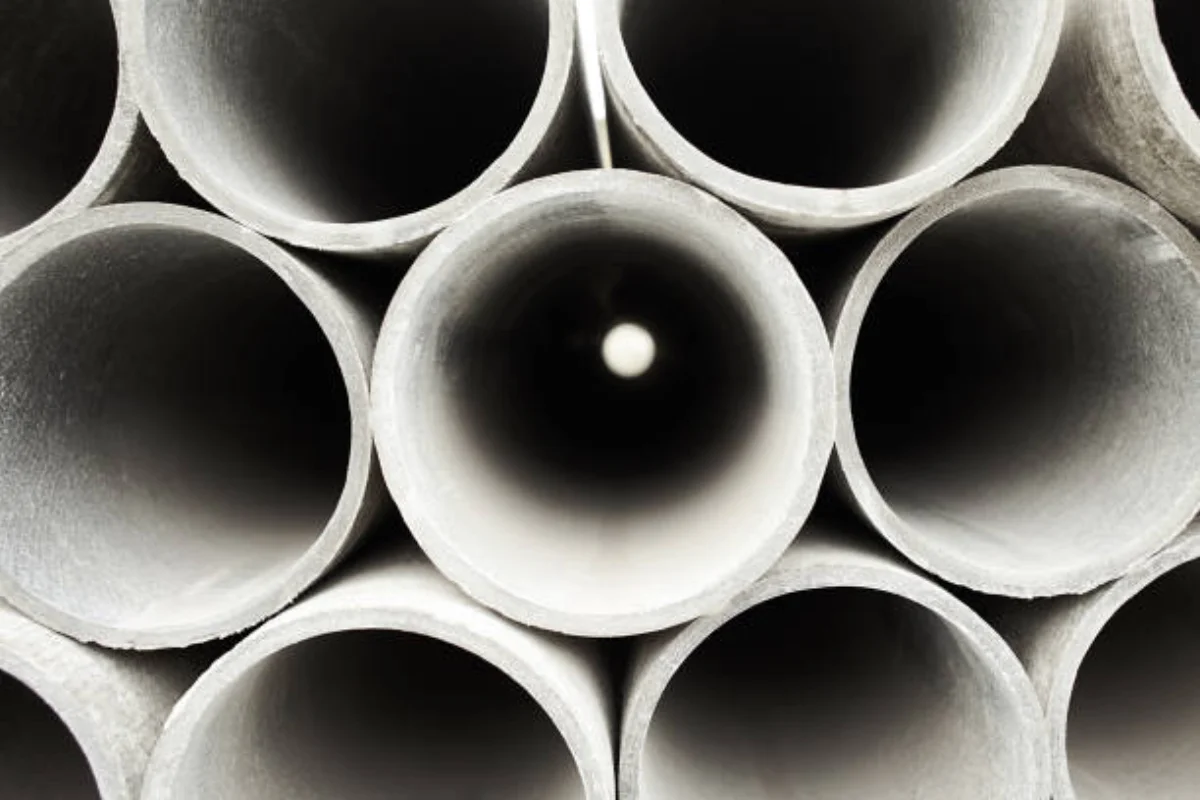

Duplex/Super Duplex

TYPE	NORMS	GRADE	RANGE
SEAMLESS	A790	S32750-32760, 904L, Alloy 6Mo. uns 31254	2”-24”
WELDED	A790	S32750-32760, 904L, Alloy 6Mo. uns 31254	2”-24”

Flanges (WN, SO, BL, TH, SW, Spectacle)

TYPE	NORMS	GRADE	RANGE
CS FLANGE	A105/A707	L3, CL3, L5, CL3	0.12”-60”
LOW TEMP FLANGE	A350	LF2,LF3,LF6	0.12”-60”
STINALESS STEEL	A182	316/316L,304/304L	0.12”-60”
DUPLEX/SUPER DUPLEX	A182	F51,F55,F5,F22,F1,F11,F91,F92	½”-60”
CS High Temp	A614	F52,F60,F65	½”-24”
DIN Standard Flanges, AWWA Flanges		PN10, PN16	4”-144”

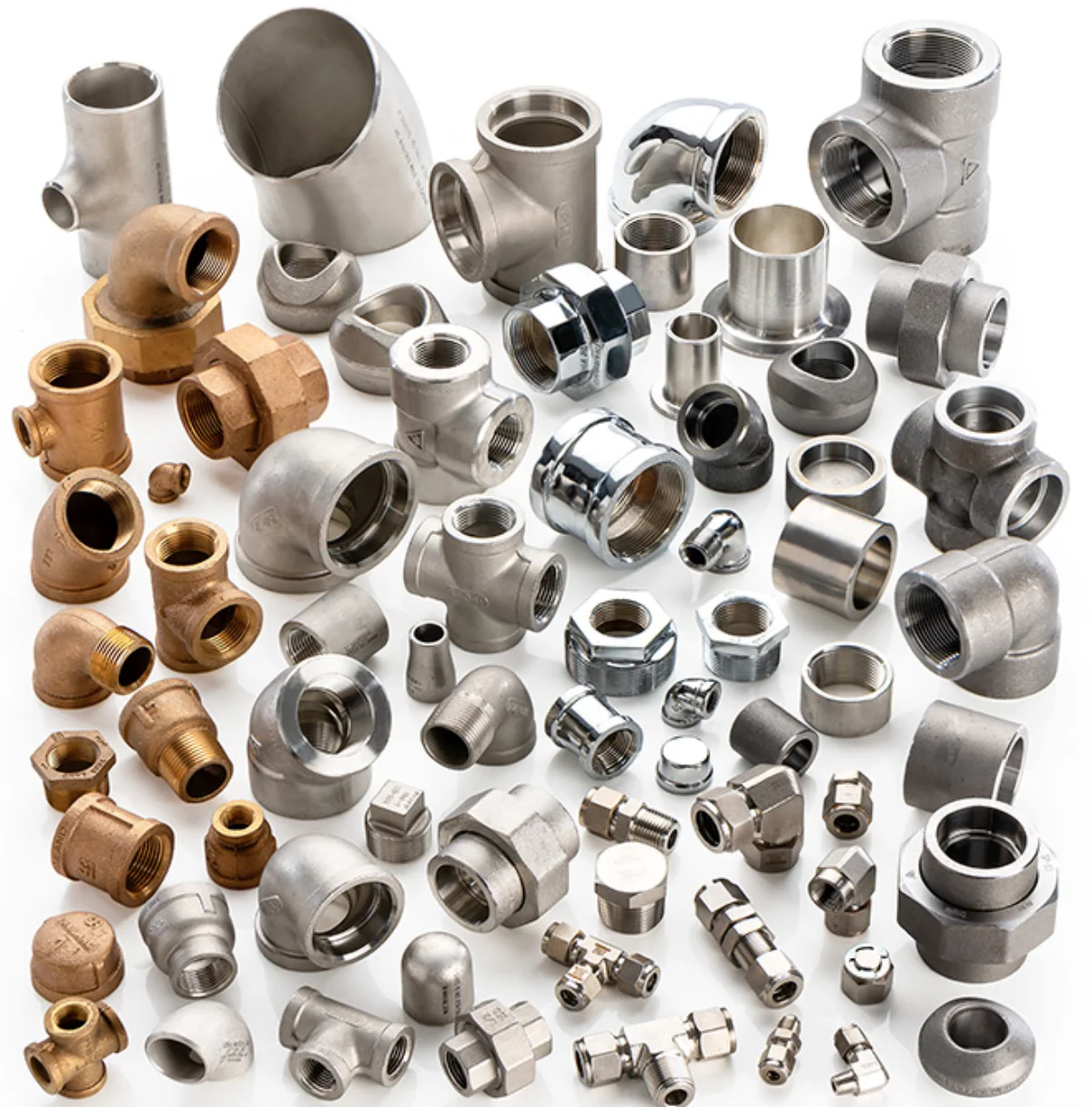

Fittings

TYPE	NORMS	GRADE	RANGE
BW FITTINGS	A234,A420,A403,A860	WPB,WPC,WPL6,316/316L,304/304L/WPH142/WPH160/WPH165	½”-60”
FORGED FITTNIGS	A105,A350,A694	LF2,F62,F52,F60,F65	½”-4”

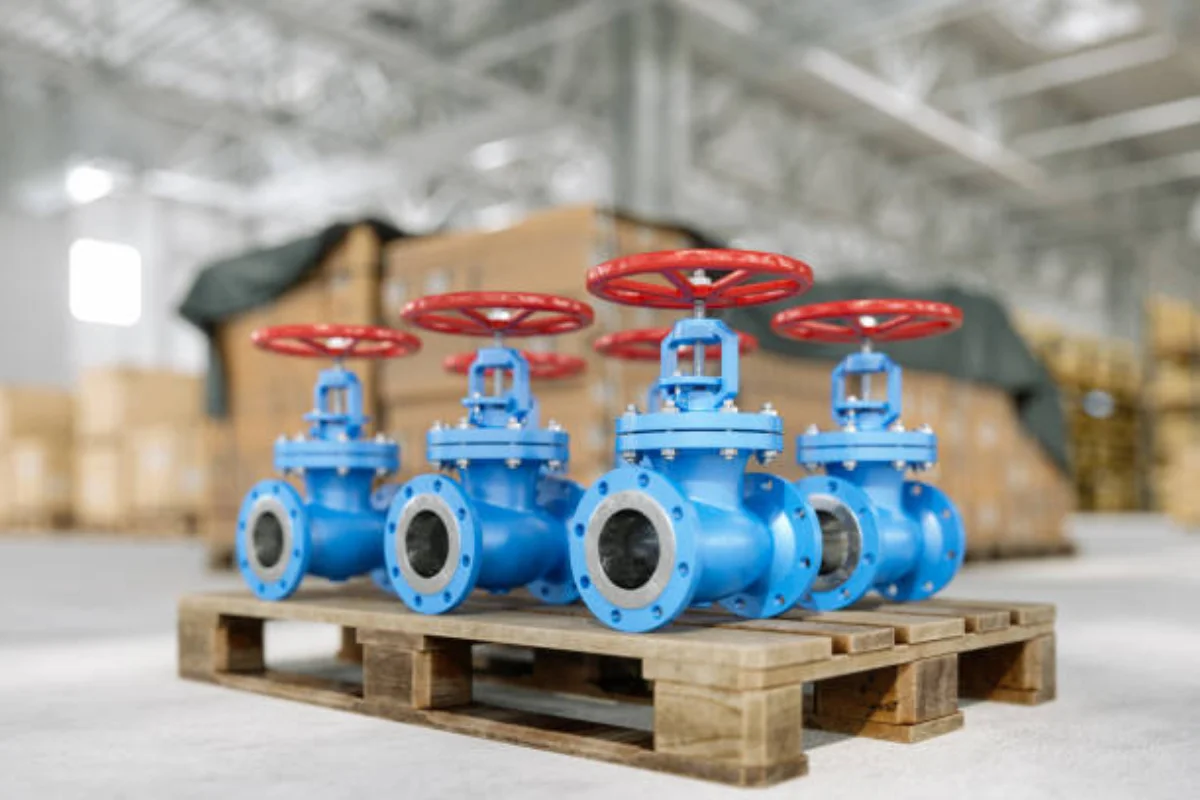

Valves

TYPE	NORMS	GRADE	RANGE
Forged Steel	A105,A350,A182	LF2,LF6,F316/316L,F304/304L	½”- 4”
Cast Carbon Steel	A216,351,352	WCB,WCC,CF8M,CF3MS,LCC,LCB	2”-24”
Duplex/Super Duplex	A890,A217	Gr 4A,5A,C5,C6	2”-24”

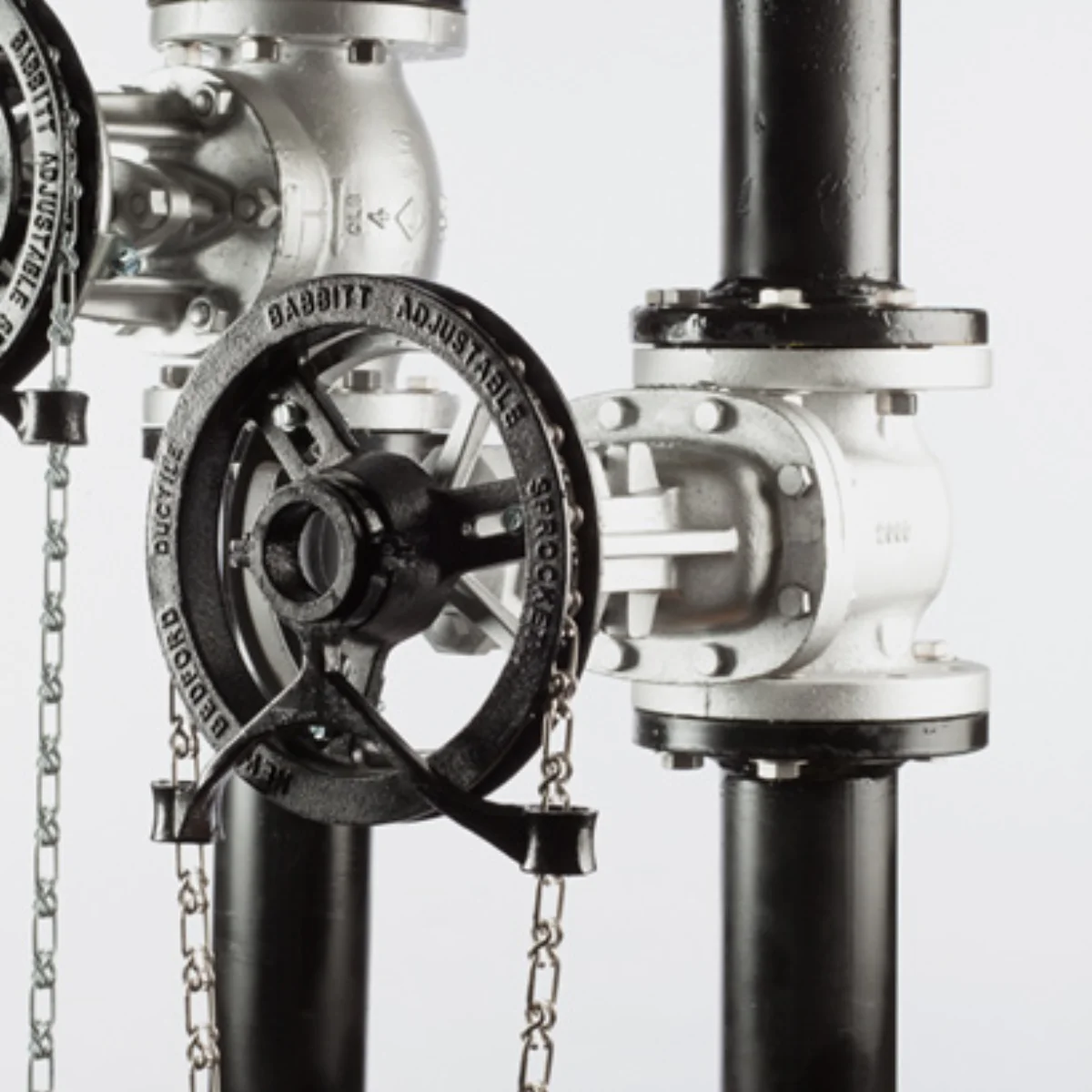

Chain Wheel

Stud Bolts

TYPE	NORMS	GRADE	RANGE
Carbon Steel	A193	B7,B7M,B8,B8M	¼”-3”
Stainless Steel	A320	L7,L7M/L8,L8M	¼”-3”

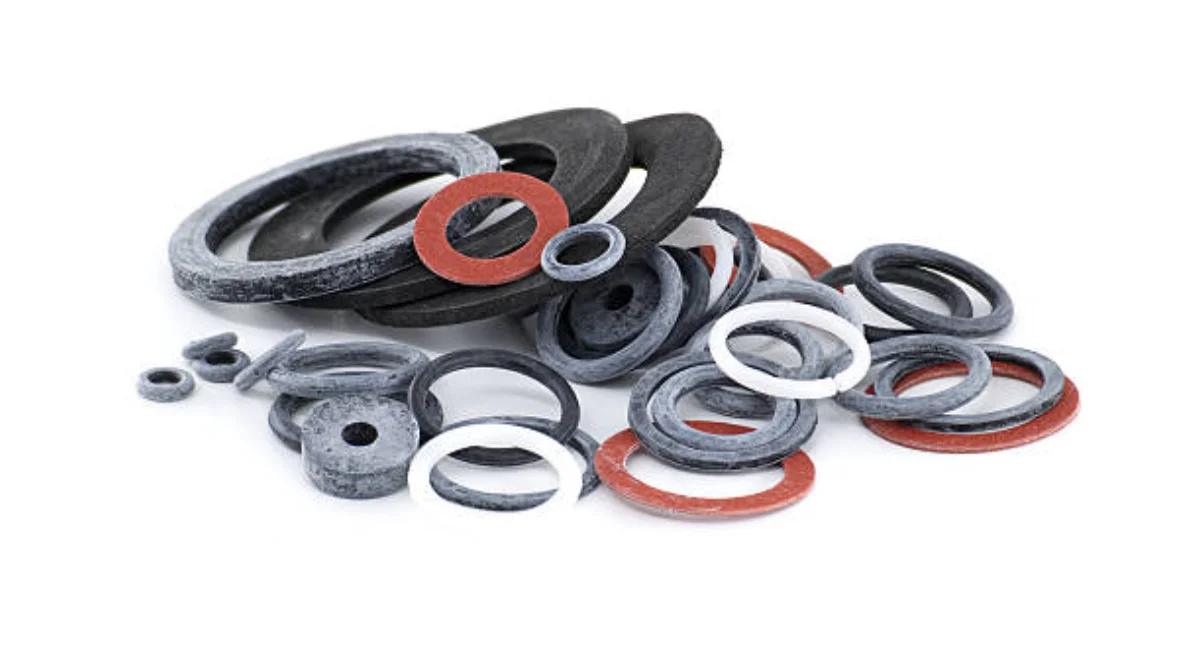

Gaskets

<

TYPE	GRADE	RANGE
Carbon Steel
Stainless Steel	Spiral Wound Gasket, Ring Joint Gasket, Metal Jacketed Gasket	½”-48”
Rubeer, Asbestos
